An e-bike controller is the central component that manages the power flow from the battery to the motor. It acts as the "brain" of your e-bike, interpreting signals from various inputs such as the throttle, pedal-assist system (PAS), and sensors, then controlling how much power is sent to the motor to propel the bike. The controller ensures that the motor operates efficiently based on the rider's inputs and the selected riding mode.
What Does an Electric Bike Controller Do?
1. Regulating the E-Bike Motor:
- The controller receives input from the throttle or pedal-assist sensor, which tells it how much power to send to the motor. Based on this input, the controller regulates the voltage and current delivered from the battery to the motor, determining how fast and how much torque the motor will produce.
- For instance, when you twist the throttle, the controller increases the power output, resulting in faster acceleration. Similarly, when using pedal-assist, the controller adjusts power based on how hard you’re pedaling.
2. Power Management and Efficiency:
- The controller ensures that the right amount of power is drawn from the battery, maximizing efficiency and extending the range of the e-bike. It prevents overloading or draining the battery too quickly, which could lead to performance issues or shorten battery life.
- The controller also incorporates regenerative braking in some e-bikes, helping recharge the battery when slowing down or going downhill, contributing to overall efficiency.
3. Managing Safety Features:
- E-bike controllers include built-in safety mechanisms like low-voltage protection, which prevents the battery from over-discharging, and overheating protection, which ensures the motor doesn’t overheat during heavy use.
- Controllers also manage braking inputs, cutting power to the motor when the brakes are applied, ensuring safety during sudden stops.
4. Coordinating Throttle and Pedal Assist Systems:
- The controller interprets signals from the throttle and pedal-assist sensors (PAS). When using the throttle, the controller sends power to the motor based on how much the throttle is engaged. In pedal-assist mode, the controller adjusts the motor’s power based on the pedaling cadence or force, providing assistance proportional to the rider’s effort.
5. Controlling Riding Modes:
- Many e-bike controllers offer different riding modes like eco, normal, or sport. These modes adjust the power output to match the rider’s preferences and the terrain. For example, eco mode provides lower power to conserve battery, while sport mode offers maximum power for faster speeds or steep climbs.
Types of Ebike Motor Controllers and How They Work
| Controller Type | How It Works | Interaction with the System | Performance | Best For |
|---|---|---|---|---|
| Square Wave Controller | Sends electrical signals in an on-off pattern, creating a square waveform. | Direct, sharp power delivery to the motor. Basic functionality. | Strong torque, fast acceleration, but noisy and less efficient. | Budget-conscious riders who prioritize acceleration over smoothness. |
| Sine Wave Controller | Produces a smooth, rounded waveform for refined power delivery. | Offers smoother, quieter, and more efficient operation. | Quiet, smooth acceleration, and efficient power use. | Commuters and long-distance riders seeking a quiet, smooth ride. |
| FOC (Field-Oriented Control) | Uses advanced algorithms to control the magnetic fields in the motor. | Maximizes motor efficiency by adjusting power in real-time. | Precise control, best efficiency, smooth operation. | High-performance riders needing precision and battery efficiency. |
| Trapezoidal Wave Controller | Generates a trapezoid-shaped waveform, balancing square and sine wave control. | Provides decent power delivery with less noise than square wave controllers. | Moderate torque and efficiency, some noise. | Riders looking for a balance between cost and performance. |
| PWM (Pulse Width Modulation) | Adjusts motor speed by switching power on and off at high frequencies. | Fine-tuned motor speed control, widely used in e-bike systems. | Good speed control and efficiency, some noise and heat. | Riders needing precise control over speed and power delivery. |

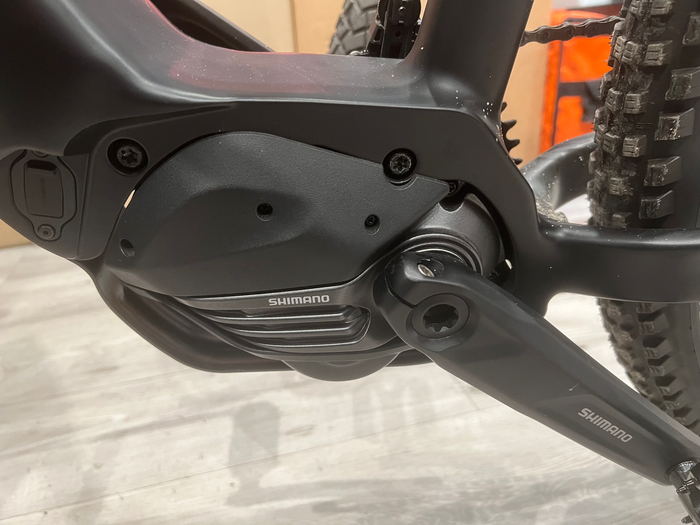

How to Choose the Right Ebike Motor and Controller for Your E-Bike
1. Voltage
- Motor Voltage: The motor's voltage must match the voltage of your battery and controller. Most e-bikes use 36V, 48V, or 52V systems. A higher voltage system (e.g., 48V) generally provides more power and efficiency, allowing for faster acceleration and higher top speeds.
- Controller Voltage: Ensure the controller is designed to handle the same voltage as your motor and battery. Using a controller with a lower voltage rating than your motor may result in underperformance or damage to the system.
Tip: Always ensure that the motor, controller, and battery all share the same voltage rating to prevent power mismatches.
2. Current (Amps)
- Motor Current (Amps): The amount of current drawn by the motor is measured in amps. The motor’s current rating defines how much power it can handle safely without overheating. More current allows the motor to produce more torque, which is important for hill climbing and acceleration.
- Controller Current: The controller's current rating should match or exceed the motor’s current needs. If the controller cannot supply sufficient current, the motor won’t reach its full potential. However, if the current is too high, it can overheat the motor.
- Battery Capacity: Ensure that the battery can deliver the required current. A battery with insufficient current output may overheat or lead to reduced performance.
Tip: Choose a controller with a slightly higher current rating than the motor’s maximum current to prevent stress on the system, but don’t exceed the motor's current tolerance.
3. Compatibility with E-Bike Controller Wiring and Motor
- Wiring and Connectors: Ensure that the motor and controller have compatible wiring systems and connectors (e.g., JST, XT60, or Anderson connectors). The pin configuration should match between the components to ensure proper communication and power delivery. If connectors don’t match, you might need adapters or rewiring.
- Phase Wires and Hall Sensor Wires: Motors typically have three phase wires and five Hall sensor wires for proper control. Ensure your controller is compatible with these connections, as mismatched wiring can cause erratic motor behavior.
- Motor Type: The controller must match the motor type, whether it's brushless (BLDC) or brushed. Most modern e-bikes use brushless motors, so ensure the controller is designed for a BLDC motor.
Tip: Always verify the pinouts and wiring diagrams of the motor and controller before installation to avoid mismatched connections.
4. Motor Power (Watts)
- Power Rating: The power rating of the motor, measured in watts, indicates how much energy it can produce. Common e-bike motors range from 250W to 1000W or higher. Higher wattage motors provide better acceleration, hill-climbing ability, and speed, but they also require a controller and battery that can handle the increased demand.
- Controller Power Output: The controller should be capable of handling the motor’s power rating. If you have a 750W motor, for instance, make sure your controller is rated to supply at least 750W of continuous power.
Tip: If you plan on carrying heavy loads or riding in hilly areas, consider a motor and controller setup with a higher power rating (e.g., 750W or 1000W).
5. Riding Conditions and Use Case
- Terrain: If you ride on flat terrain, a lower-wattage motor (250W-500W) may be sufficient. However, for hilly or off-road riding, a higher-wattage motor (750W-1000W) paired with a high-current controller is better suited for providing the necessary torque.
- Riding Speed: If your priority is speed, choose a higher voltage motor and controller combination (48V or more) to provide faster acceleration and higher top speeds. A sine wave controller would provide smoother acceleration, while a square wave controller offers better torque but with less refinement.
Tip: Match your motor and controller setup to your riding style. Urban commuters may prioritize efficiency, while off-road enthusiasts may need higher torque and power for challenging terrains.
6. Type of Controller
- Square Wave vs. Sine Wave: Choose a sine wave controller for smoother, quieter operation and better efficiency, or a square wave controller for budget-friendly options with stronger, albeit noisier, power delivery.
- Field-Oriented Control (FOC): For the best performance and precision, opt for an FOC controller, which optimizes motor performance based on real-time feedback from the motor’s position and torque demands.
Tip: For daily commuting, a sine wave controller is ideal. If you're focused on power and torque, especially for off-road riding, a square wave or FOC controller might be a better choice.
7. Braking Compatibility
- Some controllers are equipped with regenerative braking features, which can recharge the battery while braking and enhance stopping power. Ensure the controller you choose supports this feature if it’s important for your riding style.
Common Signs Your Controller Ebike Is Faulty
| Symptom | Possible Cause | Solution |
|---|
| Motor doesn't start | Loose controller wiring | Check and secure all connections |
| Motor cuts off mid-ride | Overheating e-bike motor controller | Allow the system to cool, check ventilation |
| Battery drains quickly | Faulty electric bike controller | Test the controller, replace if necessary |
| Throttle is unresponsive | Damaged controller or wiring issue | Test throttle and wiring, replace if needed |
| Sudden power loss | Loose or corroded connections | Inspect connectors for corrosion or loose wires, clean and secure |
| Jerky motor performance | Controller sending uneven power signals | Test controller and motor connections, replace controller if faulty |
| E-bike doesn’t reach full speed | Controller not delivering full power to motor | Check for loose connections, test controller, upgrade if underpowered |
| Motor runs but no pedal-assist | Faulty pedal-assist sensor or controller | Check pedal-assist sensor wiring, test controller for signal issues |
| Display shows error codes | Controller malfunction or sensor issue | Refer to the user manual for specific error codes, reset or replace controller |
| Overheating during normal use | Controller drawing too much current | Check the controller’s current rating, upgrade to match motor specifications |
| Motor making strange noises | Incorrect or fluctuating power from controller | Test for misaligned wires or faulty components, replace controller if needed |
| Speed sensor not working | Damaged speed sensor or controller issue | Inspect and test the speed sensor, replace the controller if it doesn’t recognize the sensor |
| E-bike responds slowly to throttle | Throttle signal delay due to controller failure | Test throttle connections, replace the controller if signals are delayed |
| Battery not charging | Faulty controller preventing battery charge flow | Test battery and controller charging connections, replace controller if faulty |
Can I Use Any Electric Bicycle Controller for My E-Bike?
1. Voltage Compatibility
- Your e-bike battery and motor operate at a specific voltage (e.g., 36V, 48V, or 52V). The controller must match this voltage to ensure smooth operation. Using a controller with the wrong voltage rating can cause underperformance or even damage the components.
- What to Check: Ensure the new controller’s voltage rating matches your motor and battery. For example, if you have a 48V motor, your controller must also support 48V.
2. Current and Amp Rating
- The controller's current (amps) rating must align with your motor and battery. A controller with too low a current rating may result in weak performance, while one with too high a rating can overload the motor and battery, causing overheating or damage.
- What to Check: Make sure the controller’s amp rating matches or exceeds your motor's current requirements. For example, if your motor requires 20A of continuous current, ensure your controller can handle at least that much.
3. Connector Compatibility
- Different e-bikes use different connectors (e.g., JST, Anderson, XT60, GX16). If the wiring and connectors of the new controller don’t match those of your e-bike, you’ll need to adapt the wiring, which can be complicated and potentially risky if done incorrectly.
- What to Check: Ensure the wiring and connectors on the new controller match your motor, battery, throttle, and display. If not, you may need to rewire connectors or use adapters.
4. Controller Type
- E-bike controllers can use sine wave or square wave technology. If your motor is optimized for one type, switching to the other could result in different performance (e.g., less torque, noise, or smoother operation).
- What to Check: If you have a sine wave controller and enjoy a smooth, quiet ride, make sure your new controller is also sine wave to maintain the same performance.
5. Motor Type
- Different controllers are designed for specific motor types, such as brushless (BLDC) or brushed motors. Most modern e-bikes use brushless motors, but using a controller for the wrong type of motor can lead to compatibility issues.
- What to Check: Ensure the controller is designed for your motor type. If you have a BLDC motor, use a controller designed for brushless motors.
6. Pedal-Assist System (PAS) and Throttle
- Some controllers may not support both pedal-assist (PAS) and throttle functions, depending on how they are wired and configured. Upgrading or swapping a controller could disable one of these features if the new controller doesn’t support it.
- What to Check: Verify that the new controller supports all the functions you need, such as PAS, throttle, regenerative braking, and sensors.
7. Display Compatibility
- E-bike controllers are often paired with specific displays that provide real-time feedback such as speed, battery level, and error codes. Swapping out the controller could make your existing display incompatible, meaning it won’t show correct data or function properly.
- What to Check: Ensure that your controller and display are compatible, or upgrade both at the same time to a compatible set.
Conclusion
When selecting an e-bike controller, ensure compatibility with your motor, battery, and wiring, especially regarding voltage, current, and connector types. Opt for a controller that supports the features you need, such as pedal-assist or throttle, and consider advanced options like sine wave controllers for smoother performance.
For maintenance, regularly check for loose or corroded connections, clean the wiring, and prevent overheating by keeping the controller well-ventilated. If you encounter performance issues, troubleshoot by testing connections, using a multimeter, and consulting error codes before considering a replacement. Proper selection and upkeep ensure smooth, efficient, and reliable e-bike performance.
